pu pjene za izradu traka za brtvljenje

Opis proizvoda

2 / 3 - components polyurethane form in plance foam gasket, FIPFG, automatic PU foam gasket making machine & equipment

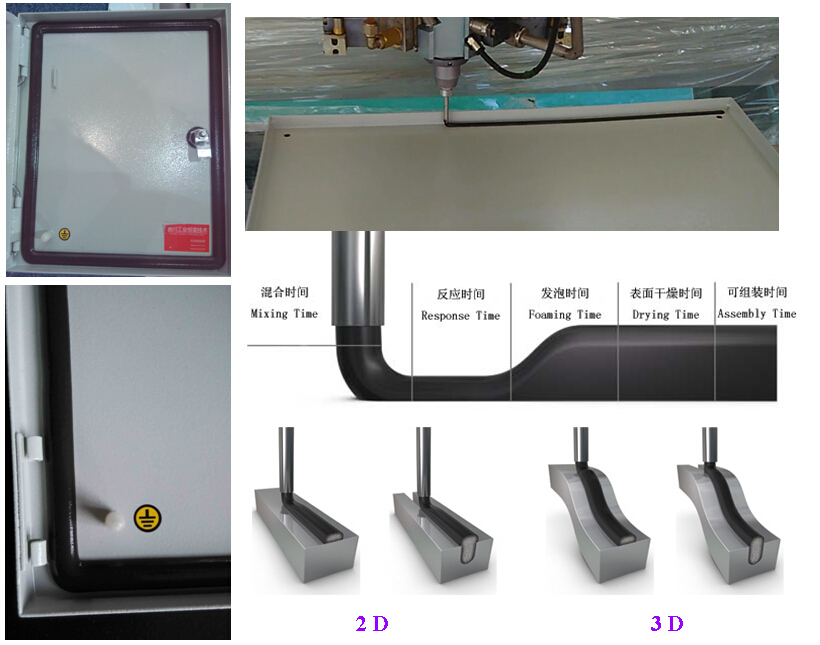

This machine can mix two (or three) kinds of raw material together and pour to pre-set position, groove, mould, or the flat surface of workpiece directly. Through chemical reaction, the liquid raw materials form elastic sealing strip in seconds. There is no joint or cut point, so comparing with other kind of sealing its effect is much better and with longer using life. And, during the forming process, the sealing strip surface become very smooth and without any crack, so its sealing effect is perfect. And, because it can stick on the workpiece naturally and tightly, no gluing worker is needed, huge cost is saved from labor and time, etc.

Oprema za brtvljenje pjene se sve više koristi u brtvenim područjima kao što su kontrolni ormarići, rasvjeta, motorna vozila, strojna industrija i sl. To je propusna, otporna na ulje, vodootpornost, prigušenje, buka i brtvljenje itd. s certifikatima kao što su UL / CE, MIL-STD-167, EN50298 i tako dalje.

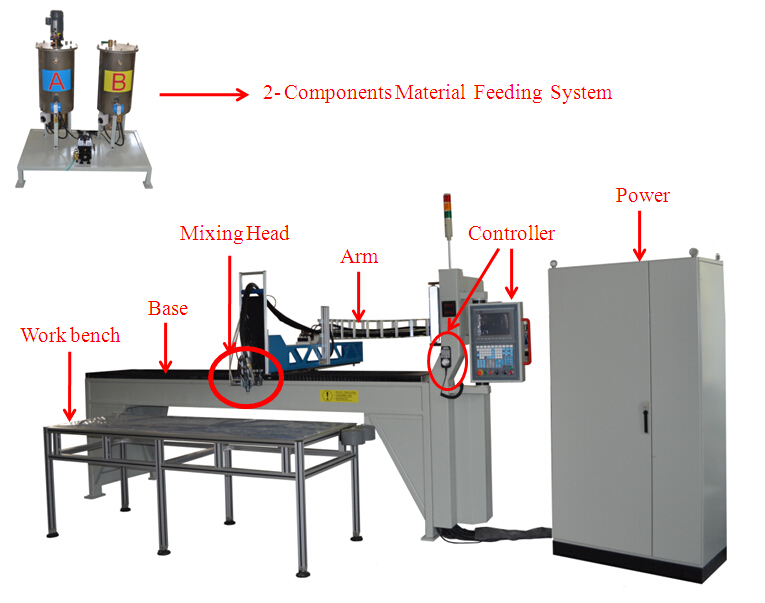

Foam Gasket Manufacturing Machine Equipment Construction:

Gasket Manufacturing Machine Standard type equipment specifications:

Foam Gasket Manufacturing Machine Main Parts

1. glava za miješanje:

Water Rinsing & Modular Design, or recycled chemical solvents for arid zone countries.

2- / 3- komponenta glava za miješanje s visokotlačnim sustavom za ispiranje vode i dinamičkim sustavom miješanja, za upotrebu s tekućinom do viskoznih polimernih reakcijskih materijala za brtvljenje, lijepljenje i poučavanje.

2. Operacijski sustav:

CNC sustav od SYNTEC-a, 180 stupnjeva slobodno rotirajući, Višenamjenski odabir, Pohranjivanje ogromnih često korištenih informacija, Plus USB sučelja i G-kod programa, Ručni rad je također dostupan, Može se jednostavno upravljati.

3. Sirove sirovine:

Dvostruko od nehrđajućeg čelika, automatska kontrola temperature.

4. Radni stol:

Aluminijska legura, jaka i izdržljiva.

5. Sustav doziranja:

Barmag metering pump, Panasonic servo motor, Microscale (2-8mm) gluing is workable.

6. Ručni kontrolor:

SYNTEC je napravio, lako kontrolirao, brz i stabilan odgovor.

7. Sustav vožnje:

Panasonic servo motor, work steady, long using life.

** Advantages of Jinjie's Gasket Manufacturing Machine **
	Our Company, Jinjie		Some other companies
Tehnologija	From German, top level, mature and stable		R&D in China, Chinese level, researching problems happened during the machines' using progress, then find out reasons and develop new types
Glava za miješanje	German technology and quality, Special Teflon coating for prevent residual		Chinese quality. (the shape and structure keep changing, two or three years later, the old type will disapear; then, maintenance and after-sales service will become very difficult.
Radni mod	2D or 3D for choice (could process special 3D patterns)		2D only
Način upravljanja	8 axis linkage as a whole (1X+1Y+1Z+1Mixing +2Metering+2Reserved, Could adjust & change to 3-components equipment or adding auto material feeding system according to needed.)		3 axis + other control systems, the stability is not good enough.
Strip Width (Standard type)	3.5-30mm		8-30mm
Strip Width (Micro- type)	2-8mm		3-8mm
Ponovite točnost pozicioniranja	+/-0.03mm		+/-0.05mm
doziranje	0.5~5g/s		1~4g/s
Continous working time	can keep working for a whole day (there is a special coating on the mixing head to prevent residual)		Frequently temporarily stop for cleaning residual, otherwise the mixing head will be clocked
After-sales Service	Jinjie's professional after-sales service group, technicians are English speaking (the machine itself has very low failure rate, the maintenance is very simple and quick)		High failure rate, complex maintenance progress; after-sales service outsourcing, professional degree is limited, cost is very high.
Processing capability of factory	machine shop belongs to ourselves, Jinjie; the metal frame is manufactured, assembled and adjusted by ourselves, high precision, good stability		The metal farme is manufactured  by another one or more companies, then assembled together directly without testing, the stability is not good enough.
Quality & Offer	Top level German quality, Price is very competitive		Common standard quality, price is not competitive

Applications:

EMM FIPFG Sealing Equipments are widely used in fields like cabinets, vehicle, electronic, appliances, lighting, and filter, etc.

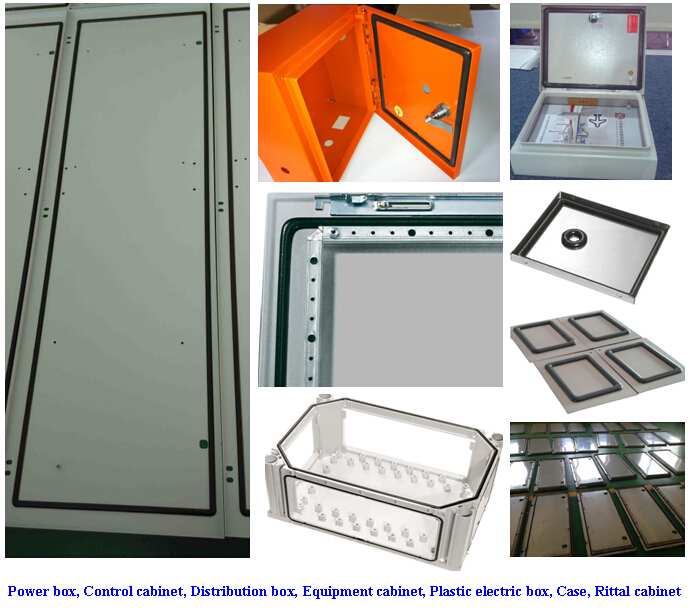

Power cabinets: Gluing and sealing on the surfaces of controller cabinets, power boxes, enclosures, doors, or other surfaces or groove, to prevent dust and moisture.

Lighting: Through foaming sealing to form sealing rings on lightings for industry, furniture, house or outside, etc.

Small containers & Packing case: sealing rings used on the cover edge of them with a lot of quantity to finish the sealing process efficiently and automatically.

Appliances: sealing strips are needed for kitchenware’s top, back and inside, or filter of cleaner, and other appliances.

Vehicle: Sealing strips used on the car body, pedal, steering wheel stand, fireproof metal plate, and other areas like car window, vent, lighting cover, air conditioner, and so on.

Filter: like those used on oil industry, air conditioner, building, refrigerator, etc

Brzi detalji

Vrsta obrade: Stroj za pjenjenje
Stanje: Novo
Product Type: foam sealing gasket
Mjesto podrijetla:, Kina (kopno)
Naziv robne marke: EMM
Napon: 380V
Power(W): 4500W
Dimension(L*W*H): 6*3*2m
Težina: 1000 kg
Certifikacija: CE
Jamstvo: 1 godina
Servisna usluga nakon prodaje: inženjeri dostupni servisnim strojevima u inozemstvu
Type: FIPFG form in place foam gasket
Strip width: Micro type: 2-8mm; Standard type: 3.5-30mm
Technology: Mixing head designed and manufactured in Germany
Dosing system: Barmag metering pump
Control system: Taiwan Syntec CNC system with hand controller
Driving system: Panasonic servo motor
Cleaning system:Water rinsing (or chemical solvent for arid zone countries)
Working speed: 0-12m/s, usually be 6-10m/s; moving speed could be 30m/s
Raw material: Polyurethane, PU, Silicon, other liquid material
Certifications: CE, ISO, RoHS, SGS, CQC, etc
